Express Launch (MAP)

All of the Linaro Forge products can be launched by typing their name in front of an existing mpiexec command:

$ map mpiexec -n 256 examples/wave_c 30

This startup method is called Express Launch and is the simplest way to get started.

The MPI implementations supported by Express Launch are:

  • Bullx MPI

  • Cray X-Series (MPI/SHMEM/CAF)

  • Intel MPI

  • MPICH 3

  • MPICH 4

  • Open MPI (MPI/SHMEM)

  • Open MPI (Cray XT/XE/XK)

  • Cray XT/XE/XK (UPC)

  • SLURM (MPMD)

If your MPI is not supported by Express Launch, an error message will display:

$ 'Generic' MPI programs cannot be started using Express Launch syntax (launching with an mpirun command).

Try this instead:
  map --np=256 ./wave_c 20

Type map --help for more information.

This is referred to as Compatibility Mode, in which the mpiexec command is not included and the arguments to mpiexec are passed via a --mpiargs="args here" parameter.

One advantage of Express Launch mode is that it is easy to modify existing queue submission scripts to run your program under one of the Linaro Forge products. This works best for MAP, which gathers data without an interactive user interface (map --profile) or Reverse Connect (map --connect, see Reverse Connect for more details) for interactive profiling.

If you cannot use Reverse Connect and want to use interactive profiling from a queue, you might need to configure Linaro MAP to generate job submission scripts for you. More details on this can be found in Start a job in a queue (MAP) and Integration with queuing systems.

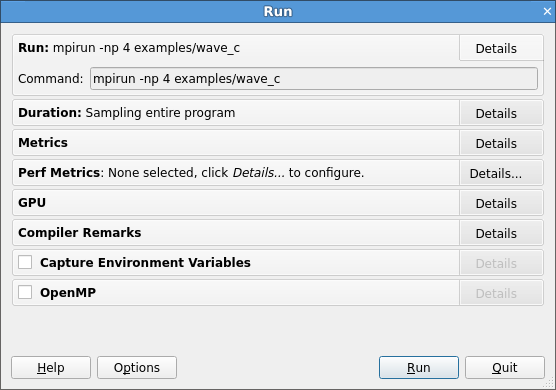

Run dialog box

In Express Launch mode, the Run dialog has a restricted number of options:

Express Launch Run dialog box
