Welcome page

Linaro MAP is a source-level profiler that can show how much time was spent on each line of code. To see the source code in Linaro MAP, compile your program with the debug flag. For most compilers this is -g. Do not use a debug build, you should always keep optimization flags turned on when profiling.

You can also use Linaro MAP on programs without debug information. In this case, inlined functions are not shown, and the source code cannot be shown but other features should work as expected.

To start Linaro MAP type one of the following shell commands into a terminal window:

map
map program_name [arguments]
map <profile-file>

Where <profile-file> is a profile file generated by a Linaro MAP profiling run. It contains the program name and has a ‘.map’ extension.

Note

Please add the Linaro Forge installation path to the PATH environment variable to make the Linaro MAP available to the console:

export PATH=<Forge installation path>/bin:$PATH

Notes:

  • When starting Linaro MAP to examine an existing profile file, a valid license is not needed.

  • Unless you are using Express Launch mode (see Express Launch (MAP)), you should not attempt to pipe input directly to Linaro MAP. For information about how to achieve the effect of sending input to your program, see Program input and output.

Linaro recommend that you start Linaro MAP with --profile. This runs without the interactive user interface and saves a .map file to the current directory, so is ideal for profiling jobs submitted to a queue.

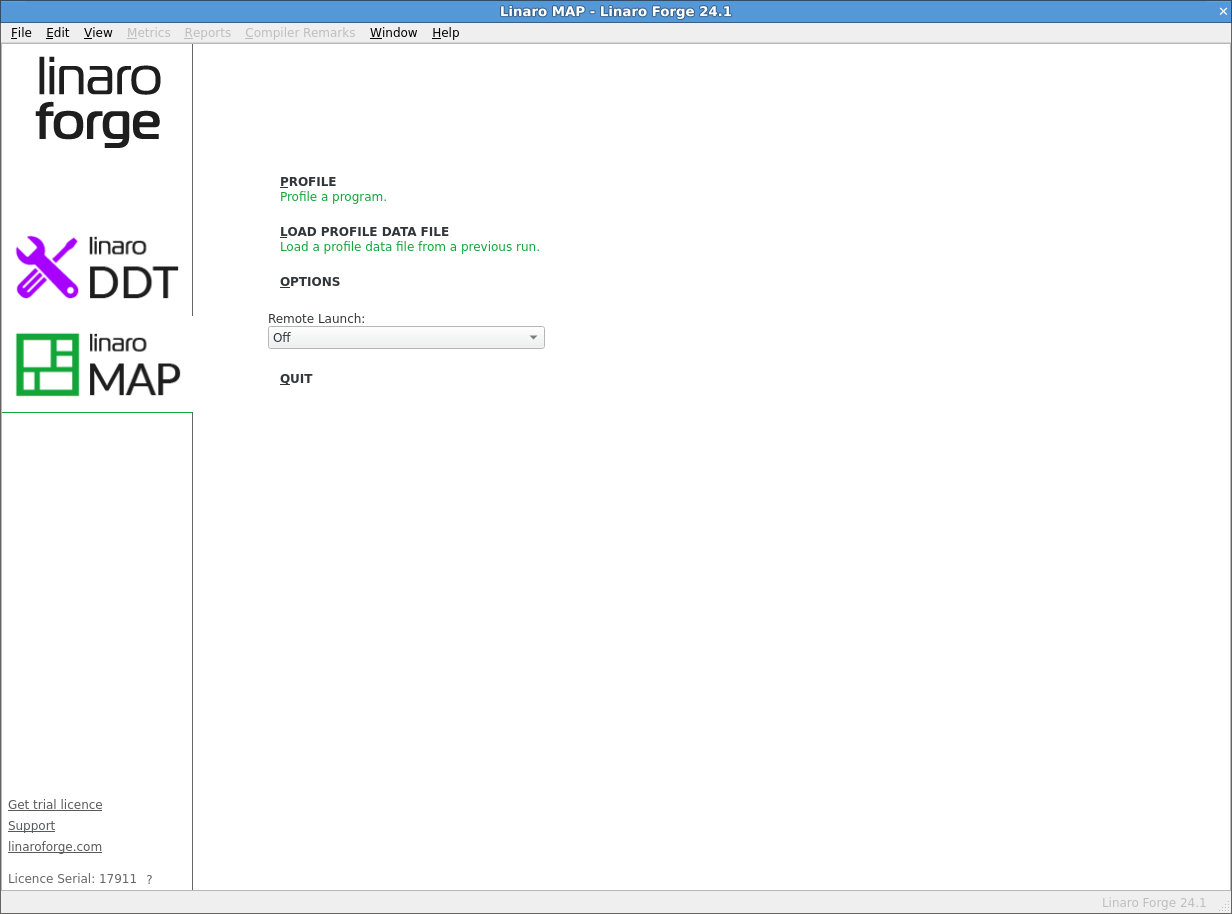

When started in interactive mode, the Welcome page displays:

MAP Welcome page

The Welcome page enables you to choose the kind of profiling you want to do, for example you can:

  • Profile a program.

  • Load a profile from a previous run.

  • Connect to a remote system and accept a Reverse Connect request.

Note

In Express Launch mode (see Express Launch (MAP)) the Welcome page is not shown and you will be brought directly to the Run dialog instead. If no valid license is found, the program exits, and a message is shown in the console output.
