MAP user interface

Linaro MAP uses a tabbed-document interface to display multiple documents. This means you can have many source files open. You can view one file in the full workspace area, or two if the Source Code viewer is ‘split’.

Each component of Linaro MAP is a dockable window that you can drag around by a handle, usually on the top or left edge. You can also double-click or drag a component outside of Linaro MAP, to form a new window. You can hide or show most of the components using the View menu. You can also select preset or custom metrics displays. The screenshot shows the default layout.

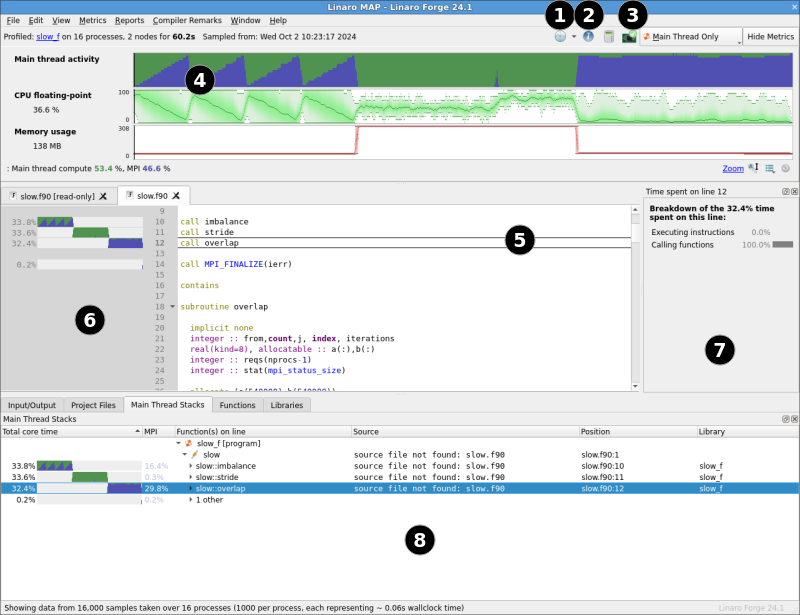

MAP main window

This table shows the main components:

Key

Component

1

Time display toggle button

2

Program details

3

Thread affinity advisor

4

Metrics view

5

Source Code view

6

Sparkline charts

7

Selected Lines view

8

Input/Output values, Project Files list, Stacks view, Functions view, Library view

Note

On some platforms, the default screen size might be insufficient to display the status bar. If this occurs, expand the Linaro MAP window until it is completely visible.
